High velocity pipeline pigging is a powerful and efficient cleaning method used in the oil and gas industry. It involves using specialized equipment to clean pipelines at high flow rates, removing debris, wax buildup, and other contaminants that can hinder the efficiency of pipelines. This process is also referred to as high flow rate pipeline cleaning or high velocity pipeline cleaning.
Inline Services, based in Tomball, TX, is a leading provider of pipeline products and services. Our company offers high velocity pipeline pigging as one of its flagship services to help oil and gas companies maintain optimal pipeline performance.
High velocity pipeline pigging is the process of cleaning pipelines using specialized tools called pigs that are propelled through the pipe at high speeds. These pigs are designed to scrape away any build-up or debris on the inner walls of the pipeline, effectively cleaning and maintaining its integrity.
The high velocity method is preferred for pipelines with a large diameter and those that transport viscous fluids such as crude oil or natural gas liquids. This process is also suitable for long-distance pipelines that require frequent cleaning to maintain their flow efficiency.

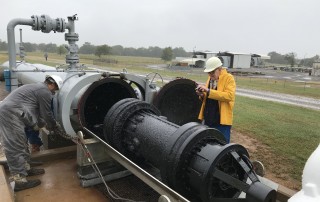

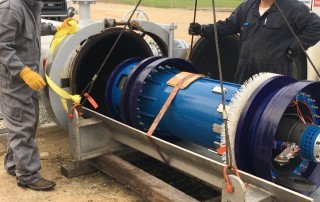

The high velocity pigging process involves inserting a specially designed pig into the pipeline through an opening, such as a valve or fitting. The pig is then propelled forward by the fluid flow within the pipeline, effectively scraping away any debris or buildup on its journey.

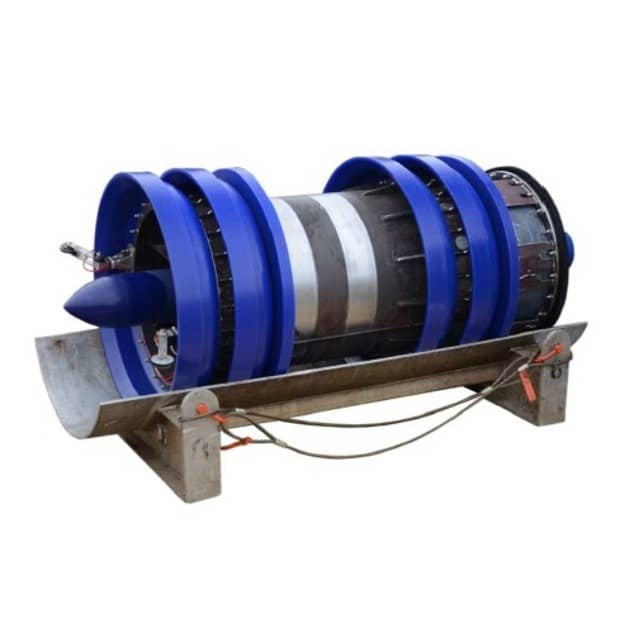

At Inline Services, we use different types of pigs depending on the specific needs of our clients. These include brush pigs, foam pigs, and solid cast pigs, each designed for different pipeline conditions and cleaning requirements.
High velocity pipeline pigging offers several benefits that make it a preferred method for pipeline maintenance.
High velocity pipeline pigging is a versatile method that can be used in various applications, including:
27731 Commercial Park Road
Tomball, Texas 77375
Tel: +1 -281.401.8142
Toll-Free: +1 -888.973.0079
Fax: +1 -281.401.8147
Simple Pigging System with Drop-Out
Simple Pigging System Closure
This animation demonstrates a simple pigging system closure. Inline’s VIPRS pig is positioned in the launcher as the product is run through the pipeline. At the end of the product run, the VIPRS pig is launched to remove all product from the line. The pig will trigger the indicator to alert that the pig has reached the end of the line.
Bi-Directional Pigging
This animation demonstrates Bi Directional Pigging. Inline’s VIPRS pig positioned in the launcher as product is run through the pipeline. At the end of the product run, the VIPRS pig is launched to remove all product from the line. When the VIPRS pig reaches the JB receiver, the propelling media is turned-off. When this happens the VIPRS pig is resting at the jail bar in the JB receiver; propellant is used on the receiver side of the pig to return it to the launcher.
Automated CIP System
This animation demonstrates a fully automated VIPRS bi directional pigging process system with CIP. Inline’s VIPRS pig is first positioned in the pig launcher. The product is pumped from the storage tank to the destination. The VIPRS pig is then launched to push the remaining product to the destination and captured in the VIPRS wash chamber at the destination station. Next, the CIP solution is pumped through the line to wash the chamber and pig. Finally, the pig pushes the CIP solution out of the piping and leaving the pig clean and ready for the next product run.
